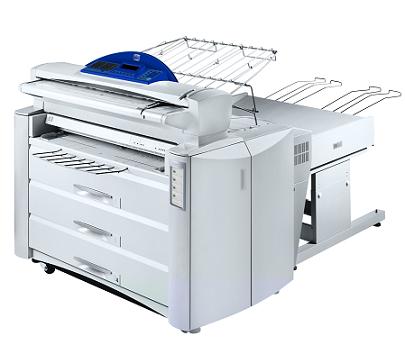

Xerox 721P Digital Document System
Benefits:
• Handles high volumes faster, easier, and at a lower cost of ownership
• Upgradable any time, without replacing equipment
• Self-cleaning features reduce operator and service effort, while maintaining superior image quality and reducing print failures.
• Single-component toner system creates zero waste, increasing equipment reliability and providing exceptional toner yields
Features:
• Consistently delivers superb images, printing at up to 22 D-size (A1) prints per minute
• 400 x 400 dpi resolution with outstanding grayscale renderings in 256 levels
• Software Feature Keys enable easy on-site upgrades
• Optional Scan System provides full multifunction support to complement business processes -- printing, copying, full-color scan-to-file, and scan-to-print
Key Applications:
• Centralized reprographics departments
• Commercial reprographics firms
• Print-for-pay businesses
• Rated speed 9.4 ips
• Resolution 400 x 400 dpi
• Throughput Up to 22 ANSI/20 ARCH D-size, 11 ANSI/10 ARCH E-size prints per minute
Capabilities:
• Printed Sides Simplex
• MICR No
Technology:
• PDLs With FreeFlow Accxes Controller: HP-GL2, FileNET, Xerox Emulation 150, Versatec Data Standards, CalComp, TIFF 6.0, NIRS, CALS 1&2, RLE, CGM, VCGL
•Optional: Adobe PostScript 3, PDF
•With PLP Plotworks: HP-GL, HP-GL2, HP-RTL, CalComp 906/907, CALS Type 1, TIFF 3 and 4, BMP, XIF, PCX, VRF, JPG, DCX, DGN, CGM, PDF, AutoCAD.dwg, AutoCad.dwt, PostScript, Reprodesk/Apprentice--JOB, VIC, PEN and SET files
• Network Interfaces: TCP/IP with lpr/lpd standard
• With PLP Plotworks: FreeFlow™ Accxes Controller via network connection; PLP Scorpion Interface Card
• CPU Celeron
• Process/Imaging Xerographic LED
• Memory 512 MB standard
With PLP PlotWorks: 512 MB standard; expandable up to 2 GB
• Hard Disk 80 GB IDE SATA
With PLP PlotWorks: 20 GB EIDE, 48x IDE CD-ROM Drive
Paper Handling:
• Paper sources 4 rolls
• Standard paper capacity 500 feet
• Media Dimensions - Minimum 8.5 x 11 inches
• Media Dimensions - Maximum 36" x 20'
(36" x 78.75' option programmable by Service person)
• Media Types Bond, vellum, film
Input:
• Other Input Devices Manual sheet bypass
Output:
• Optional High Capacity Stacker Optional High Capacity Stacker: Stacker 1000 stacks up to 1,000 mixed size prints
• Output Tray Optional Catch Tray: 50 E-size/100 D-size
Print Controllers:
• Digital Front Ends •FreeFlow Accxes Controller
• PLP PlotWorks Controller
Environmental:
• Electrical Requirements 50/60 Hz single phase, 220-240 VAC, 16 amp
• Dimensions W: 54"; D: 39"; H: 37"
