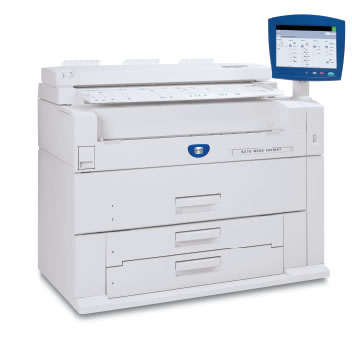

Xerox 6279 Digital Document System
Benefits:
• Flexible, productive, solution for mid-range CAD environments
• Fast and efficient to meet even the most demanding deadlines
• Versatile configurations to fit your changing needs
• ntuitive color user interface for easy walk-up use
• Small footprint saves space and fits virtually anywhere
Features:
• Prints at 7 or 9 D (A1) ppm and can scan up to 6 ips (152.4 mm/sec) with the optional on-board scanner while printing
• Superior image quality (600 x 600 dpi) for crisp, accurate prints and copies
• Large 15" (381 mm) color touch-screen interface is user-friendly and convenient
• Optional color scanning enables color workflows
• Choose 2-roll, 4-roll, or 2-roll/2-cut-sheet-tray configuration to best meet your printing and media needs
• Available as a printer, copier/printer with on-board scanner, or multi-function with Wide Format Scan System
• Integrated FreeFlow™ Accxes™ Print Server expands your print capabilities to production level
Key Applications:
• Architectural or construction plans
• Architectural or engineering renderings
• Schematics
• Electrical diagrams
• Mechanical 2D
• Solids modeling
• Mechanical 3D
• Scientific/Medical
• Seismic
• GIS/Mapping
Capabilities:
• Rated speed 4.1 ips (105 mm/sec)
• Resolution 600 x 600 dpi
• Scan speed Optional On-Board Scanner:
• Monochrome: 4 ips (101.6 mm/sec), 6 ips (152.4 mm/sec) (optional)
• Optional Color: 1 ips (25.4 mm/sec), 2 ips (50.8 mm/sec) (optional)
Wide Format Scan System:
• Copying is 2 ips (50.8 mm/sec) with 4 ips (101.6 mm/sec) option and 8 ips (203.2 mm/sec) scanning option
• Grayscale Levels 256 simulated monochrome only
• Throughput 7 D (A1) ppm standard; 9 D (A1) ppm optional
• First-copy-out time < 23 sec (Roll 1, D/A1 size)
Optional Configurations:
• Printer
• Copier/Printer with On-board Scanner
• Multi-Function with Wide Format Scan System
• Printed Sides Simplex
• MICR No
Technology:
• PDLs - Standard: HPGL/2 (HP 750C emulation), HP-RTL (HP 750C emulation), TIFF 6.0 (including LZW), CALS 1&2, CalComp 906/907/951/PCI, FileNET, NIRS, CGM, VCGL, VRF, Versatec Data Standards, Xerox Emulation 150, C4, JPEG
• Optional: Adobe® Postscript® 3™, PDF (1.6), DWF, BMP, JPEG 2000, PNG, GIF, DGN
• Network Interfaces TCP/IP 10/100/1000; LPR; TFTP
• User Interface 15" (381 mm) full color touch screen
• Process/Imaging Xerographic LED
• Memory 2 GB or better
• Hard Disk 80 GB or better
Paper Handling:
• Paper sources - 2-Roll Configuration: 1 drawer, 2 rolls
• 4-Roll Configuration: 2 drawers, 4 rolls
• 2-Roll/2-Tray Configuration: 2 rolls, 2 cut-sheet trays
• Standard paper capacity 2 rolls
• Media Dimensions - Minimum 11" (279.4 mm) width
• Media Dimensions - Maximum 36" (914.4 mm) width
• Media Weight - Minimum 18 lbs (60 gsm)
• Media Weight - Maximum 20 lbs (122 gsm)
• Media Types Bond, tracing paper, film
Input:
• Other Input Devices On-board scanner (optional)
• Wide Format Scan System (optional)
Output:
• Output Capacity 100 D-size (A1)
• Folder Generic Folder Interface (GFI)
Print Controllers:
• Digital Front Ends FreeFlow Accxes Print Server
Environmental:
• Electrical Requirements Print Engine: 208/220-240V +- 10%, 50-60 Hz, 20 A
• Wide Format Scan System: 110 V (15 A), 240 V (6 A) +- 10%, 50-60 Hz
• FreeFlow Accxes Print Server: 110 V (15 A), 240 V (6 A) +- 10%, 50-60 Hz
• Dimensions Printer: 61" W x 33.3" D x 55.1" H (1,550 W x 847 D x 1400 H mm)
• Printer with On-Board Scanner: 61" W x 33.3" D x 55.1" H (1,550 W x 847 D x 1400 H mm)
• Wide Format Scan System: 53" W x 53.07" D x 45.9" H (1,345 W x 1348 D x 1168 H mm)
Security:
• Security Features Image Overwrite (with FreeFlow Accxes)
