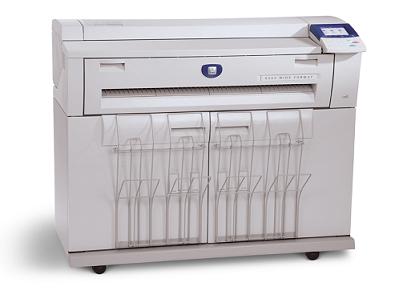

Xerox 6204 Digital Document System
Benefits:
• Fast, easy to use, cost-effective solution
• Small footprint saves space and fits virtually anywhere
• Enables point-of-need use to meet turnaround times and deadlines
• Flexible, scalable design can grow with your needs
Features:
• Small footprint, rugged design, and front-exit paper path allow for use anywhere
• Choice of Basic Print Server or FreeFlow™ Accxes™ Print Server and multiple configurations provide solutions for a variety of work environments
• Powerful, easy-to-use features for casual users as well as experts
• Superior image quality (600 x 600 dpi) for crisp, accurate prints and copies
• A variety of options can be added as your business needs grow:
• Scan-to-file and scan-to-network capabilities
• Upgrade from one roll to two rolls for increased capacity
• Speed upgrade from 4D to 5D ppm for increased productivity
• Upgrade to true Adobe PostScript for more flexible printing
Key Applications:
• Utilities, architecture, engineering, construction, communications companies, and much more
• Ideal for environments from remote job sites to small offices
Performance:
• Rated speed 2.36 ips
• Resolution Print: 600 x 600 dpi Scan
• Internal Scanner: 600 dpi
• Wide Format Scan System: 600 dpi (interpolated 400 x 600)
• Scan-to-net: 400 dpi
• Scan speed Internal Scanner: 3 ips
• Wide Format Scan System: 2 ips (standard), 4 ips (optional)
• Grayscale Levels 256
• Throughput 4 D-size (A1) prints per minute (5 D/A1 ppm optional)
• First-copy-out time 25 sec
Optional Configurations:
• Printer
• Copier/Printer
• Copier/Printer with scan-to-file/-net
• Copier/Printer with Wide Format Scan System
• Printed Sides Simplex
• MICR No
Technology:
• PDLs - With Basic Print Server: HPGL, HPGL/2, HP-RTL, TIFF 6.0, VRF, VCGL, CALS1
• Optional: Adobe Postscript/PDF
• With FreeFlow Accxes Controller: HP-GL, HP-GL2, HP-RTL, C4, FileNET, Versatec Data Standards (VRF, Ordered vector, blocked raster, compacted raster), CalComp 906/907/951/PCI, TIFF 6.0, NIRS, CALS 1&2, RLE, CGM (Level 1 with ATA ext.), VCGL, CCITT (G4, G3 1D, G3 2D, Packbits, RLE, Seed Row and Adaptive)
• Optional: Adobe Postscript 3 PDF, DWF
• Network Interfaces With Basic Print Server: TCP/IP 10/100, LPR
• With FreeFlow Accxes: TCP/IP, LPR
• User Interface Touch-screen interface
• CPU Internal embedded controller
• Process/Imaging Xerographic LED
• Memory With Basic Print Server: 1.25 GB
• With FreeFlow Accxes: 1 GB
• Hard Disk With Basic Print Server: 40 GB
• With FreeFlow Accxes: 80 GB
Paper Handling:
• Paper sources Standard: 1 roll, Single Cut-sheet Inserter
• Optional: 2nd roll
• Standard paper capacity 1 roll
• Media Dimensions - Minimum 11" (width)
• Media Dimensions - Maximum 36" (width), 49.2' (length)
• Media Weight - Minimum 18 lbs
• Media Weight - Maximum 20 lbs
• Media Types Bond, vellum, tracing paper, film
Input:
• Other Input Devices Wide Format Scan System
Output:
• Output Capacity 20 D-size (A1)
• Stacker Front Exit Stacker
Print Controllers:
• Digital Front Ends Optional: FreeFlow Accxes Controller
Environmental:
• Electrical Requirements 120V, 12 amp
• Dimensions Printer w/Basic Print Server: 51.6" x 22" x 43"
• Printer w/FreeFlow Accxes Server: 56.6" x 22" x 43"
• Printer/Copier w/Basic Print Server: 51.6" x 22" x 46"
• Printer/Copier w/FreeFlow Accxes Server: 56.6" x 22" x 46"
• Wide Format Scan System: 53" x 16" x 45"
Security:
• Security Features Image Overwrite (with optional FreeFlow Accxes Controller)
As an ENERGY STAR® Partner, Xerox has determined that this product meets ENERGY STAR® guidelines for energy efficiency.
