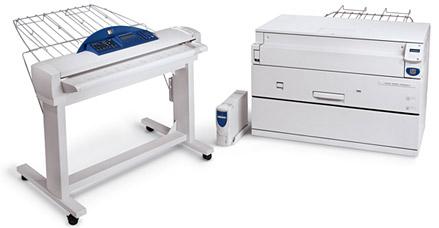

Xerox 6050 Digital Document System
Benefits:
• Boosts your productivity with quick print speeds, multitasking capabilities, and large media capacity
• Fits easily into your workflow by supporting multiple data formats and print drivers with integrated FreeFlow™ Accxes™ print server
• Consolidates the functions of several devices to become your center for productivity
• Flexible printer and multifunction configurations provide a wide range of solutions for many environments
• Easy to operate with an intuitive interface and familiar FreeFlow Accxes print driver
Features:
• Produces 7 or 9 D-size black-and-white prints per minute at 600 x 600 dpi
• Versatile to fit your business needs – configure as a printer-only or multifunction, with either 2 or 4 print rolls, and optional scanning
• True multitasking capability allows you to scan while you print
• Addresses specialized printing demands with the FreeFlow Accxes controller
• Sample Copy feature lets you preview jobs and make exposure or size adjustments before submitting the entire run
• Uses automatic background suppression to improve copies made from worn originals
• Optional Wide Format Scan System provides production scan-to-file capability to enable sharing and printing of color files over your network
Key Applications:
• Addresses both walk-up and production copy/print needs in:
• Architectural or Construction plans
• Architectural or Engineering renderings
• Schematics
• Electrical diagrams
• Mechanical 2D
• Solids modeling
• Mechanical 3D
• Scientific/Medical
• Seismic
• GIS/Mapping
Capabilities:
• Rated speed 4.1 ips
• Resolution Printer: 600 x 600 dpi
• Scan System: Up to 600 x 600 dpi
• Scan speed With Wide Format Scan System: 2 ips standard, 4 ips or 7.3 ips optional
• Throughput 7 or 9 D-size (A1) prints per minute
• First-copy-out time 32 sec
Optional Configurations:
• 2-Roll Printer
• 4-Roll Printer
• 2-Roll Multifunction
• 4-Roll Multifunction
• Printed Sides Simplex
• MICR No
Technology:
• PDLs - Standard: HPGL/2 (HP 750C emulation), HP-RTL (HP 750C emulation), TIFF 6.0 (including LZW), CALS 1&2, CalComp 906/907/951/PCI, FileNET, NIRS, CGM, VCGL, VRF, Versatec Data Standards, Xerox Emulation 150, C4, JPEG
• Optional: Adobe® PostScript® 3™, PDF (1.6), DWF, BMP, JPEG 2000, PNG, GIF, DGN
• Network Interfaces 10/100/1000, LPR, TFTP
• User Interface Intuitive control panel and touchscreen interface
• Process/Imaging Xerographic LED
• Memory 1 GB (max 4 GB)
• Hard Disk FreeFlow Access Controller: 80 GB
Paper Handling:
• Paper sources 2-Roll Configuration: 1 drawer, 2 rolls
• 4-Roll Configuration: 2 drawers, 4 rolls
• Media Dimensions - Minimum 11 inches
• Media Dimensions - Maximum 36 inches
• Media Types Bond (18-20 lbs.), HPH Vellum (20 lbs.), Film (4 mil.), Tracing Paper (20 lbs.)
Input:
• Other Input Devices •Optional Multi-sheet Inserter
• Wide Format Scan System
Output:
• Optional High Capacity Stacker Optional High Capacity Stacker: Stacker 1000 stacks up to 1,000 mixed size prints
• Output Tray •Catch tray: 100 sheets D (A1)
• Optional Compact Catch Tray
Finishing:
• Folder Optional folder interface: Generic folder interface (GFI) card
Print Controllers:
• Digital Front Ends FreeFlow Accxes Controller
Environmental:
• Electrical Requirements Print Engine: 208/240 V, 50-60 Hz, 12 amp
• Scan System: 110/240 V, 50-60 Hz, 2 amp max
• FreeFlow Accxes: 110/220 V, 50-60 Hz, 5/2.5 amp max
• Dimensions Printer: W: 49.2"; D: 25.2"; H: 37"
• Scan System: W: 16"; D: 53"; H: 45"
