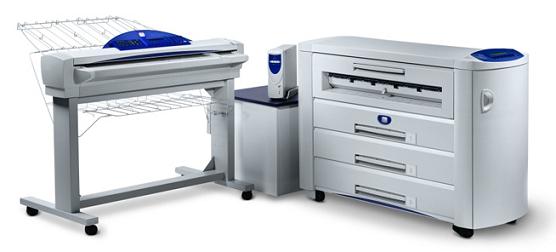

Xerox 510 Digital Document System
Benefits:
• Scalable to customize a solution to your exact print/scan needs
• Upgradable any time, without replacing equipment
• Meets diverse business goals, from a small workgroup to a high-volume print room
• Businesses maximize investment dollars; users profit from identical image quality and software capabilities
• Total cost of ownership is lowest on the market for comparable printers and volumes
Features:
• FreeFlow Accxes™ Controller delivers outstanding connectivity, RIP speed and concurrency
• Over 60 configurations of printer and scanner speeds, on-line media, and color or monochrome scanning
• Print at speeds of 5, 7 or 10 D-size prints per minute
• Scan to multiple file formats, including PDF, storing full color files in 24-, 8- or 4-bit sizes
• Software Feature Keys provide unprecedented control over system configurations
Key Applications:
• Workgroups producing CAD and GIS documents
• Businesses with growing/changing print requirements
• Rated speed 4.5 ips
• Resolution 400 x 400 dpi
• Copy/Scan Speed 2 ips at 400 dpi (4 ips with optional upgrade)
• Scan speed 4 ips at 200 dpi (8 ips with optional upgrade)
• Throughput 5, 7, or 10 D-size (A1) prints per minute
Other Copying Features:
• Concurrency: Scan/Copy/Print
• Digital Retention: Up to 999 copies from a set of at least 100 standard E size (A0) drawings
• Copy Modes: Line, Mixed, Photo
• Imaging: Inverse, Mirroring, Margins, Rotation, 7-copy contrast levels
• Output: Auto/Manual Roll Selection and Scaling
Capabilities:
• Printed Sides Simplex
• MICR No
Technology:
• PDLs With FreeFlow Accxes Controller: HP-GL2, FileNET, Xerox Emulation 150, -Versatec Data Standards, CalComp, TIFF 6.0, NIRS, CALS 1&2, RLE, CGM, VCGL
• Optional: Adobe PostScript 3, PDF
• Network Interfaces IEEE 1284 Bi-directional Centronics, SCSI-2, 10/100 Ethernet (TCP/IP) supports 10/100 BaseT, Optional External Print Server
• CPU Power PC
• Process/Imaging Xerographic LED
• Memory 256 MB standard, expandable to 512 MB
• Hard Disk 80 GB IDE
Paper Handling:
• Paper sources 1 to 3 rolls
• Standard paper capacity up to 650 feet
• Media Dimensions - Minimum 8.5 x 11 inches
• Media Dimensions - Maximum Print: 36" x 82' - Copy: 36" x 100'
• Media Types Bond, vellum, film, tracing paper
Input:
• Other Input Devices Wide Format Scan System
Output:
• Stacker Flat Stacker: up to 100 prints
• Optional High Capacity Stacker Optional High Capacity Stacker: Stacker 1000 stacks up to 1,000 mixed size prints
Print Controllers:
• Digital Front Ends FreeFlow Accxes Controller
Environmental:
• Electrical Requirements 115V @ 20A; 208-240V @ 20A
• Dimensions W: 59.3"; D: 42.3"; H: 22.5"
