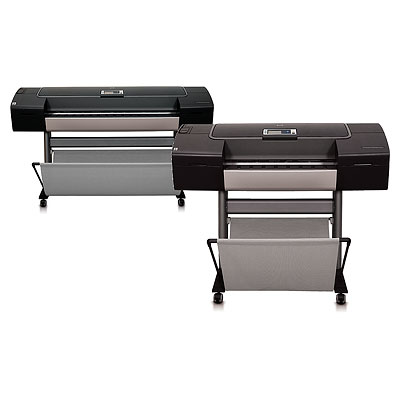

HP Designjet Z3200
Overview
This 12-ink HP Designjet, with new HP 73 Chromatic Red ink, delivers long-lasting gallery-quality prints in black and white and color. It enables easy calibration and profiling with its embedded spectrophotometer[3] and also delivers great ink efficiency.[9]
Features
Produce gallery-quality black-and-white and color prints
• Color and black-and-white print permanence of 200 years[1] on a range of HP and HP Hahnemühle papers.
• Beautiful black-and-white prints have smooth transitions, true neutral grays—HP Quad-black ink set.
• Get superior gloss uniformity and minimize bronzing on most glossy photo papers with HP Gloss Enhancer.[5]
• This printer's expanded color gamut achieves 95% PANTONE* coverage[11] enabled by its new chromatic red ink.
Easily calibrate and profile with HP DreamColor Technologies
• Calibration and profiling are made simple with HP DreamColor Technologies and embedded spectrophotometer.[3]
• Simplify workflows—easily access, create, and share paper presets[10] using the enhanced HP Color Center.
• Create a customized PANTONE* simulation swatchbook[8] with HP Professional PANTONE* Emulation.[6]
• The HP Advanced Profiling Solution[8] offers additional options for profiling and calibration.
Enables productive operation and great ink efficiency[9]
• Expect always-on quality with proactive automatic servicing routines that result in great ink efficiency.[9]
• Optical Drop Detector (ODD) prevents nozzle clogging—and, as a result, printing errors and media waste.
• Rich, dark blacks on matte and glossy papers—and you don't have to swap cartridges.
• This printer contains an HP Embedded Web Server, print previews, and other efficiency-enhancing features.
Specifications
Model size
Z3200 24-in / Z3200ps 24-in: 24 in
Z3200 44-in / Z3200ps 44-in: 44 in
Print area/hr, max width, Draft mode, coated
Z3200 44-in / Z3200ps 44-in: 182.9 ft2/hr
Print area/hr, max width, Normal mode, coated
Z3200 44-in / Z3200ps 44-in: 92.4 ft2/hr
Mechanical print time, US D color image, Best mode, glossy
12.4 min/page
Mechanical print time, US D color image, Normal mode, glossy
7.2 min/page
Mechanical print time, US D color image, Normal mode, coated
3.8 min/page
Mechanical print time, US D color image, Draft mode, coated
2 min/page
Line accuracy
+/- 0.2%
Color accuracy
Median < 1.6 dE2000, 95% of colors < 2.8 dE2000
Minimum line width
0.0022 in
Maximum black optical density
2.5 maximum black optical density (4 L* min) with HP Premium Instant Dry Photo Gloss media
Short term color stability
< 1 dE2000 in less than 5 minutes
Long term print-to-print repeatability
Average < 0.5 dE2000, 95% of colors < 1.4 dE2000
Print quality/technology
Print technology
HP Thermal Inkjet
Resolution
Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi with maximum detail selected
Print head nozzles
2112
Ink cartridges
12 (blue, green, magenta, red, yellow, gray, photo black, matte black, light cyan, light gray, light magenta, gloss enhancer)
Ink types
HP Vivera pigment inks
Ink drop size
4 pl (lc, lm, lg, pK, E, G), 6 pl (M, Y, mK, R, GN, B)
Paper handling
Maximum roll length
300 ft
Document finishing
Sheetfeed, roll feed, automatic cutter (cuts all media except canvas)
Media sizes, standard
Z3200 24-in / Z3200ps 24-in: A, B, C, D
Z3200 44-in / Z3200ps 44-in: A, B, C, D, E
Media types
Photographic (satin, gloss, semi-gloss, matte, Baryte paper ), proofing (semi-gloss, high-gloss contract, semi-gloss contract, matte), fine art printing material (smooth, textured, watercolor, satin, aquarella, litho-realistic, canvas), self-adhesive (indoor, vinyl, polypropylene), banner and sign (display film, indoor banner, scrim, polypropylene, Tyvek, outdoor, billboard, PVC-free), bond and coated (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical (tracing, translucent bond, vellum), film (clear, matte, polyester), backlit, fabric/textile (flag, polyester, silk)
Media weight, recommended
133 lb
Memory/print languages/typefaces
Memory, standard
256 MB
Print languages, standard
Z3200ps 24-in / Z3200ps 44-in: Adobe PostScript 3, Adobe PDF 1.6, TIFF, JPEG, HP PCL 3 GUI
Z3200 24-in / Z3200 44-in: HP PCL 3 GUI
Connectivity
Connectivity, standard
Z3200 24-in / Z3200 44-in: 1 10/100Base-T Ethernet RJ-45 port, 1 Hi-Speed USB 2.0 certified port, 1 EIO Jetdirect accessory slot
Z3200ps 24-in / Z3200ps 44-in: 1 1000Base-T Ethernet RJ-45 port, 1 Hi-Speed USB 2.0 certified port, 1 EIO Jetdirect accessory slot
Connectivity, optional
HP Jetdirect EIO print servers
Macintosh compatible
Yes
Compatible Operating Systems
Windows Vista(R); Windows Vista(R) x64; Windows XP Home; Windows XP Professional; Windows XP Professional x64; Windows Server 2008 (32 and 64-bit); Windows Server 2003 (32/64 bit); Windows Terminal Services; Citrix MetaFrame; Mac OS X v 10.4; Mac OS X v 10.5
Dimensions/weight/warranty
Product dimensions (W x D x H)
Z3200 24-in / Z3200ps 24-in: 49.7 x 27.2 x 41.2 in
Z3200 44-in / Z3200ps 44-in: 69.7 x 27.2 x 41.2 in
Dimensions, max. (W x D x H)
Z3200 24-in / Z3200ps 24-in: 49.7 x 27.2 x 41.2 in
Z3200 44-in / Z3200ps 44-in: 69.7 x 27.2 x 41.2 in
Product weight
Z3200 24-in / Z3200ps 24-in: 143 lb
Z3200 44-in / Z3200ps 44-in: 189 lb
Warranty
One-year warranty with on-site, next business-day service
What's included
Z3200 24-in: HP Designjet Z3200 24-in Photo Printer, spindle, printheads (6 x 2 colors each), introductory ink cartridges (x12), Original HP media roll, stand (24 in) (not in AP), rear tray (24 in), adaptor kit (3 in) for spindle (x2), quick reference guide, setup poster, USB cable, power cord, HP Start-up kit including printer software
Z3200 44-in: HP Designjet Z3200 44-in Photo Printer, spindle, printheads (6 x 2 colors each), introductory ink cartridges (x12), Original HP media roll, stand (44 in), rear tray (44 in), adaptor kit (3 in) for spindle (x2), quick reference guide, setup poster, USB cable, power cord, HP Start-up kit including printer software
Z3200ps 24-in: HP Designjet Z3200ps 24-in Photo Printer, spindle, printheads (6 x 2 colors each), introductory ink cartridges (x12), Original HP media roll, stand (24 in) (not in AP), rear tray (24 in), adaptor kit (3 in) for spindle (x2), quick reference guide, setup poster, USB cable, power cord, HP Start-up kit including printer software, HP Advanced Profiling Solution
Z3200ps 44-in: HP Designjet Z3200ps 44-in Photo Printer, spindle, printheads (6 x 2 colors each), introductory ink cartridges (x12), Original HP media roll, stand (44 in), rear tray (44 in), adaptor kit (3 in) for spindle (x2), quick reference guide, setup poster, USB cable, power cord, HP Start-up kit including printer software, HP Advanced Profiling Solution
Cable included?
Yes, 1 USB
Software included
Z3200 24-in / Z3200 44-in: Printer drivers, HP Printer Utility including HP Color Center
Z3200ps 24-in / Z3200ps 44-in: Printer drivers, HP Printer Utility including HP Color Center, HP Advanced Profiling Solution
