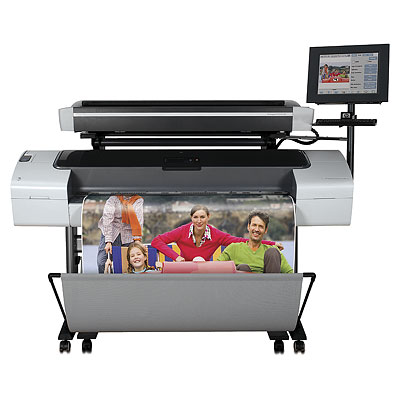

HP Designjet T-1120 MFP
Overview
Deliver the highest quality without loosing any image detail with this HP MFP. Copy, scan, and print CAD and graphics output on demand with a fast device that delivers superior scan and print quality.
Features
Excellent copy, scan, and print results
• Professional prints—HP Vivera inks with the Three-black ink set produce a wide range of colors and fine detail.
• Get a high level of quality—from line drawings to maps to posters—with CCD scanning technology and embedded PS.
• Scan and archive older—including previously folded—documents and save space.
• Fast-drying, smudge-resistant prints—HP Vivera inks are designed together with a range of Original HP printing materials.
Performs 3 functions in 1—quickly and effectively
• This HP MFP scans, copies, and prints your projects quickly, so you're back to business in no time.
• Batch scanning and printing is fast and easy thanks to the free HP Instant Printing Utility and collating features.
• Get back to work quickly, knowing that prints with high levels of detail are not going to cause problems thanks to In-printer processing, including an 80 GB HDD and embedded PS.
• Assume greater control over this MFP—and all copy, scan, and print functions—with a range of effective management tools.
Do more with a unique integrated HP solution
• Convenient single-vendor solution—built together to work together.
• Save valuable workspace with single, integrated multifunction solution.
• Quickly adapt to customer changes and demands with real time preview and retouch software.
Footnotes:
[1]Serif PosterDesigner Pro for HP is an optional feature. Not included, sold separately.
[2]Mechanical printing time on plain media using Fast Economode.
[3]Using plain paper in Normal mode for a 36-inch original.
[4]Fully compatible with HP Designjet 5x0, 800, 1000, 40X0, 45X0, 5X00, T11X0, T610, Z2100, Z3X00, Z6100 series products.
Functions
All-in-one functions
Print; copy; scan
Specifications
Model size
44 in
Print area/hr, max width, Draft mode, coated
445 ft²/hr
Print area/hr, max width, Normal mode, coated
110 ft²/hr
Mechanical print time, US D b&w line drawing, Draft mode, plain
35 sec/page
Mechanical print time, US D color line drawing, Draft mode, plain
35 sec/page
Line accuracy
+/- 0.1%
Minimum line width
0.002 in
Maximum black optical density
2.15 maximum black optical density (6 L *min)
Print quality/technology
Print technology
HP Thermal Inkjet
Resolution
Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi with maximum detail selected
Print head nozzles
1056
Resolution technology
Color layering technology
Ink cartridges
6 (cyan, gray, magenta, matte black, photo black, yellow)
Ink types
Dye-based (C, M, Y, G, PK); pigment-based (MK)
Ink drop size
6 pl (C, M, PK, G), 9 pl (Y, MK)
Paper handling
Maximum roll length
300 ft
Document finishing
Printer: sheet feed; roll feed; automatic cutter; scanner: sheet feed
Duplex printing (printing on both sides of paper)
None (not supported)
Media sizes, standard
A; B; C; D; E
Media types
Printer: bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl); scanner: non-abrasive paper, vellum, mylar, sepia, blueprints, plastic film, plastic laminate, foam board, cardboard. (No plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)
Memory/print languages/typefaces
Memory, standard
Printer: 384 MB; scanner: 1 GB
Print languages, standard
Adobe PostScript 3; Adobe PDF 1.6; TIFF; JPEG; HP-GL/2; HP-RTL; CALS G4; HP PCL 3 GUI
Scanner specifications
Scanner type
Sheetfed
Scan size, maximum (flatbed)
42-in wide
Scan resolution black (best)
300 x 300 dpi
Scan resolution color (best)
300 x 300 dpi
Scan resolution, optical
Up to 508 dpi
Linear scan speed
Color (200 dpi/400 dpi Turbo): up to 2 in/sec; black and white (200 dpi/400 dpi Turbo): up to 6 in/sec
Copier specifications
Copy reduce/enlarge settings
1 to 10000%
Maximum number of copies
Up to 1000 copies
Connectivity
Connectivity, standard
Printer: 1 Gigabit Ethernet (1000Base-T) port; 1 Hi-Speed USB 2.0 certified port; 1 EIO Jetdirect accessory slot; scanner: 1 Gigabit Ethernet (1000Base-T) port; 1 FireWire (IEEE-1394a compliant) port
Connectivity, optional
HP Jetdirect print servers
Macintosh compatible
Yes
Compatible Operating Systems
Windows Vista (R) (32 and 64-bit); Windows Server 2008 (32 and 64-bit); Windows XP Home and Professional (32 and 64-bit); Windows Server 2003 (32/64 bit); Mac OS X v 10.4; Mac OS X v 10.5; Novell NetWare 5.x, 6.x; Citrix XenApp; Citrix XenServer
Dimensions/weight/warranty
Product dimensions (W x D x H)
74.8 x 39.4 x 63 in
Dimensions, max. (W x D x H)
78.7 x 55.1 x 63 in
Product weight
440 lb
Warranty
One-year limited hardware warranty
What's included
Printer; printheads (3 x 2 colors each); introductory ink cartridges; 44-in stand; quick reference guide; setup poster; Serif PosterDesigner Pro poster; start-up software; scanner; touchscreen (panel PC); keyboard; scanner documentation CD; system recovery DVD; customer service guide; USB cable; FireWire cable; Ethernet cable; power cords
Cable included?
Yes, 1 Ethernet; 1 USB; 1 FireWire
Software included
HP Instant Printing Utility
