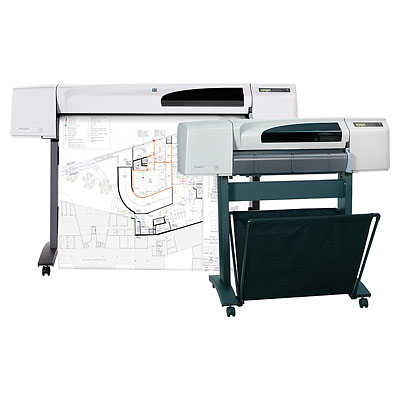

HP Designjet 510
Overview
The most affordable standalone HP printer for small studios that print large-format technical documents in-house. The new Designjet 510 Printer series combines fine line and image quality to deliver high-impact results quickly and conveniently.
Features
Conveniently print large-format technical drawings
• Conveniently print CAD documents with print speeds up to 55 seconds for A1/D-sized documents.
• HP Instant Printing—quickly print your HP-GL/2 and PLT files with the simple click of a button.
• Easily share this large-format Designjet among multiple users with optional network capability.
• Delivers complete compatibility with the latest applications and operating systems.
Reliable performance, high line and image quality
• Produce quality images thanks to this printer's 2400 x 1200 optimized dpi resolution.
• High-quality output for technical CAD drawings—sharp detail, accurate lines, superior resolution.
• Process complex files with great ease thanks to 160 MB of memory.
• Based on the very reliable and best-selling HP Designjet 500 large-format printer series.
Bring CAD printing in-house, at the right price
• Get high quality, high reliability at an affordable price.
• A choice of 28-ml and 69-ml HP ink cartridges enables cost-effective printing matched to your needs.
• Operation is easy and intuitive, so you can focus on key projects and not on your printer.
Specifications
Model size
510 24-in: 24 in
510 42-in: 42 in
Mechanical print time, US D color image, Best mode, glossy
16 min/page
Mechanical print time, US D color image, Normal mode, glossy
9.5 min/page
Mechanical print time, US D color image, Normal mode, coated
7 min/page
Mechanical print time, US D color image, Draft mode, coated
2.5 min/page
Mechanical print time, US D b&w line drawing, Draft mode, plain
510 42-in: 55 sec/page
510 24-in: 80 sec/page
Mechanical print time, US D color line drawing, Draft mode, plain
510 42-in: 55 sec/page
510 24-in: 80 sec/page
Line accuracy
+/- 0.2 %
Minimum line width
0.0008 in (theoretical value); 0.003 in (practical value)
Print quality/technology
Print technology
HP Thermal Inkjet
Resolution
2400 x 1200 dpi
Resolution technology
HP Color Layering Technology
Ink cartridges
4 (1 each cyan, magenta, yellow, black)
Ink types
Dye-based (color), pigment-based (black)
Ink drop size
4 pl (color), 18 pl (black)
Paper handling
Maximum roll length
Unlimited (depends on media thickness)
Document finishing
Single sheet feed, roll feed, automatic cutter
Duplex printing (printing on both sides of paper)
None (not supported)
Media sizes, standard
510 42-in: ANSI A, B, C, D, E, F; Arch A, B,C, D, E, E1, E2, E3, F
510 24-in: ANSI A, B,C, D; Arch A, B, C, D
Media types
Bond and coated (bond, coated, heavyweight coated, inkjet, colored), technical (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic (high-gloss, semi-gloss, instant-dry gloss, instant-dry semi-gloss), proofing (professional semi-gloss contract, matte, premium semi-gloss), self-adhesive (two-view cling film, indoor paper, matte polypropylene, colorfast vinyl), banner and sign (display film, gloss indoor banner, opaque scrim, matte polypropylene, Tyvek, outdoor, blue back outdoor), canvas
Memory/print languages/typefaces
Memory, standard
160 MB
Print languages, standard
HP-GL/2, HP-RTL, HP PCL 3 GUI
Connectivity, standard
USB 2.0 compliant, IEEE-1284-compliant parallel (ECP)
Connectivity, optional
HP Jetdirect 620n Fast Ethernet Print Server, 630n IPv6 Gigabit Print Server, 635n IPv6/IPsec Print Server, ew2400 802.11g Wireless Print Server, en1700 IPv4/IPv6 Print Server
Macintosh compatible
Yes
Compatible Operating Systems
Windows Vista(R); Windows XP Home; Windows XP Professional; Windows Server 2003; Windows 2000; Mac OS X v 10.3; Mac OS X v 10.4; Mac OS X v 10.5
Dimensions/weight/warranty
Product dimensions (W x D x H)
510 24-in: 49 x 19 x 14 in
510 42-in: 67 x 27 x 43 in
Product weight
510 24-in: 85.3 lb
510 42-in: 99.6 lb
Warranty
One-year, next business day, on-site warranty
What's included
510 24-in: HP Designjet 510 24-in Printer, spindle, printheads (4 x 1 color), introductory ink cartridges (x4), quick reference guide, setup poster, doc and drivers CD, customer service guide, power cord
510 42-in: HP Designjet 510 42-in Printer, printer stand and media bin, spindle, printheads (4 x 1 color), introductory ink cartridges (x4), quick reference guide, setup poster, doc and drivers CD, customer service guide, power cord
Cable included?
No
