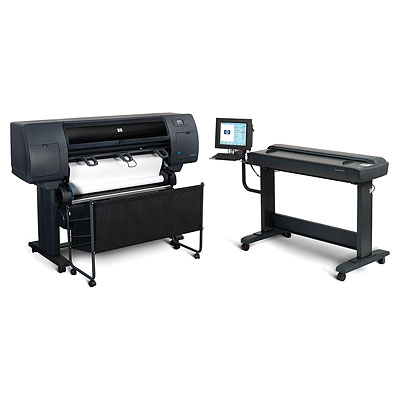

HP Designjet 4520 MFP
Overview
High quality, real productivity, and cost control features are yours with your HP Designjet. Large input and output capacity enables unattended printing. Control costs with more efficient use and management and greater visibility into expenses.
Features
Unattended color production and low cost operation
• Take advantage of unattended color printing with two long media rolls up to 175 meters and reliable 775-ml black, 400-ml color Original HP ink cartridges.
• Double your print capacity and truly maximize productivity with HP Double Swath technology and 160 GB hard disk.
• Experience greater cost efficiency with free HP support, HP supplies that deliver a better value, and finishing options that save time and money.
Provides great possibilities to grow your business
• Experience more possibilities to increase your personal productivity with the HP Instant Printing Utility and embedded Web server.
• Turn your HP Designjet into a print workflow management system with optional stacker and SCP reprocontrol for HP[5].
• Produce excellent lines and images with patented HP inks, printheads enabling 0.1% line accuracy, and HP Professional Color technologies.
• Expand your business with high performance copy and scan capabilities.
Trusted integration in your IT environment
• Trusted connectivity and security—with optional HP Jetdirect support[6] and advanced access control.
• Manage your HP Designjet, fleet of devices, and your costs with HP Web Jetadmin and the embedded Web server.
• Experience true peace of mind with a printer and printing supplies you know you can trust—from a company with years of experience and expertise.
Footnotes:
[1]Serif PosterDesigner Pro for HP is an optional feature. Not included, sold separately.
[2]The HP Designjet 4520 Scanner comes standard on the HP Designjet 4520 HD-MFP.
[3]Compared to any HP Designjet 600/700/800/1000 series printer.
[4]PostScript support available on the HP Designjet HP Designjet 4520 HD-MFP in English only.
[5]SCP reprocontrol for HP is an optional feature. Not included, sold separately.
[6]Available with the 4520 HD-MFP.
[7]Maximum memory includes 608 MB RAM plus 512 MB accessory.
[8]IPsec and IPv6 support requires the purchase of the HP Jetdirect 630n or HP Jetdirect 635n.
Functions
All-in-one functions
Print; copy; scan
Specifications
Model size
42 in
Print area/hr, max width, Draft mode, coated
339.9 ft²/hr
Mechanical print time, US D color image, Normal mode, glossy
3.9 min/page
Mechanical print time, US D color image, Normal mode, coated
3.3 min/page
Mechanical print time, US D color image, Draft mode, coated
1.2 min/page
Mechanical print time, US D b&w line drawing, Draft mode, plain
25 sec/page
Mechanical print time, US D color line drawing, Draft mode, plain
25 sec/page
Line accuracy
+/- 0.1%
Minimum line width
0.003 in
Print quality/technology
Print technology
HP Thermal Inkjet
Resolution
Up to 2400 x 1200 optimized dpi from 1200 x 1200 dpi input on glossy media
Print head nozzles
524
Resolution technology
Color layering technology
Ink cartridges
4 (1 each black, cyan, magenta, yellow)
Ink types
Dye-based (C, M, Y); pigment-based (K)
Ink drop size
5 pl (C, M, Y); 15 pl (K)
Paper handling
Maximum roll length
575 ft
Document finishing
Printer: two automatic roll feeds; automatic rollswitching; automatic cutter; scanner: straight-through scan paper path for sheet and cardboard originals
Duplex printing (printing on both sides of paper)
None (not supported)
Media types
Printer: bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte); technical paper (natural tracing, translucent bond, vellum); film (clear, matte, polyester); photographic paper (satin, gloss, semi-gloss, matte, high-gloss); proofing paper (semi-gloss, semi-gloss contract); self-adhesive (indoor paper, polypropylene, vinyl); banner and sign material (outdoor paper, blue back billboard paper); scanner: non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard (No plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)
Media weight, recommended
.16 x .53 lb
Memory/print languages/typefaces
Memory, standard
Printer: 608 MB; scanner: 1 GB
Print languages, standard
Adobe PostScript 3; Adobe PDF 1.5; TIFF; JPEG; HP-GL/2; HP-RTL; CALS G4
Scanner specifications
Scanner type
Sheetfed
Scan size, maximum (flatbed)
42-in wide
Scan resolution black (best)
300 x 300 dpi
Scan resolution color (best)
300 x 300 dpi
Scan resolution, optical
Up to 508 dpi
Linear scan speed
Up to 3 in/sec (color, 200 dpi/400 dpi Turbo); up to 10 in/sec (black-and-white, 200 dpi/400 dpi Turbo)
Copier specifications
Copy reduce/enlarge settings
1 to 10000%
Maximum number of copies
Up to 1000 copies
Connectivity
Connectivity, standard
Printer: 1 Gigabit Ethernet (1000Base-T) port, 2 FireWire (IEEE-1394a compliant) ports, 1 EIO Jetdirect accessory slot; scanner: 1 Gigabit Ethernet (1000Base-T) port, 1 FireWire (IEEE-1394a compliant) port
Connectivity, optional
HP Jetdirect print servers
Macintosh compatible
Yes
Compatible Operating Systems
Windows Vista (R) (32 and 64-bit); Windows Server 2008 (32 and 64-bit); Windows XP Home and Professional (32 and 64-bit); Windows Server 2003 (32/64 bit); Mac OS X v 10.4; Mac OS X v 10.5; Linux (see http://www.hplipopensource.com)
Dimensions/weight/warranty
Product dimensions (W x D x H)
Printer: 76 x 31.5 x 53.2 in; scanner: 70.8 x 33.4 x 54.3 in
Dimensions, max. (W x D x H)
Printer: 76 x 31.5 x 53.2 in; scanner: 70.8 x 40.2 x 54.3 in
Product weight
408 lb
Warranty
One-year limited hardware warranty
What's included
Printer; 42-in printer stand and bin; printheads (x8); printhead cleaners (x8); introductory ink cartridges; roll module; user maintenance kit; quick reference guide; setup poster; Serif PosterDesigner Pro poster; documentation and drivers software; scanner; touchscreen (panel PC); keyboard; scanner documentation CD; system recovery DVD; customer service guide; FireWire cables (x2); Ethernet cable; power cords
Cable included?
Yes, 2 FireWire (1 scanner to touchscreen, 1 touchscreen to HP printer); 1 Ethernet
Software included
Serif PosterDesigner Pro poster; documentation and drivers software
